AIRTEC MOTORSPORT STAGE 3 FRONT MOUNT INTERCOOLER FOR AUDI RS3 8V (NON-ACC ONLY)

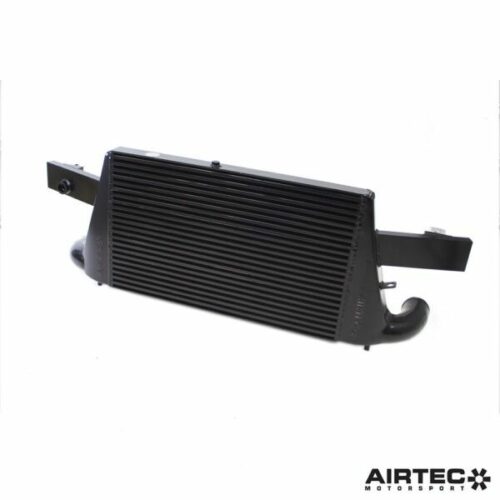

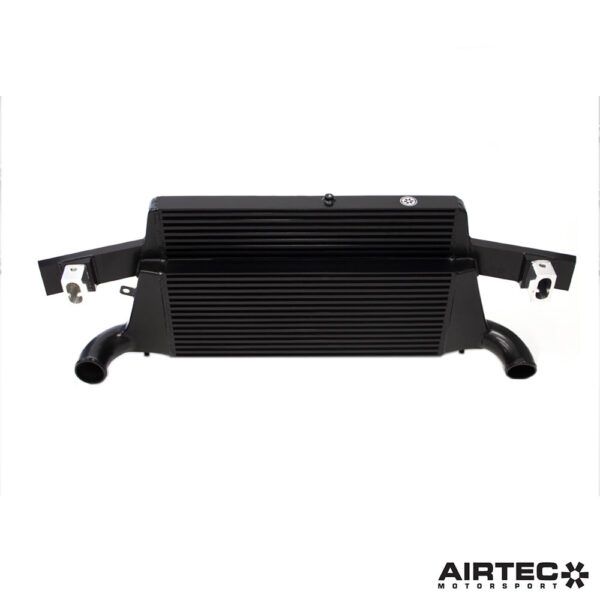

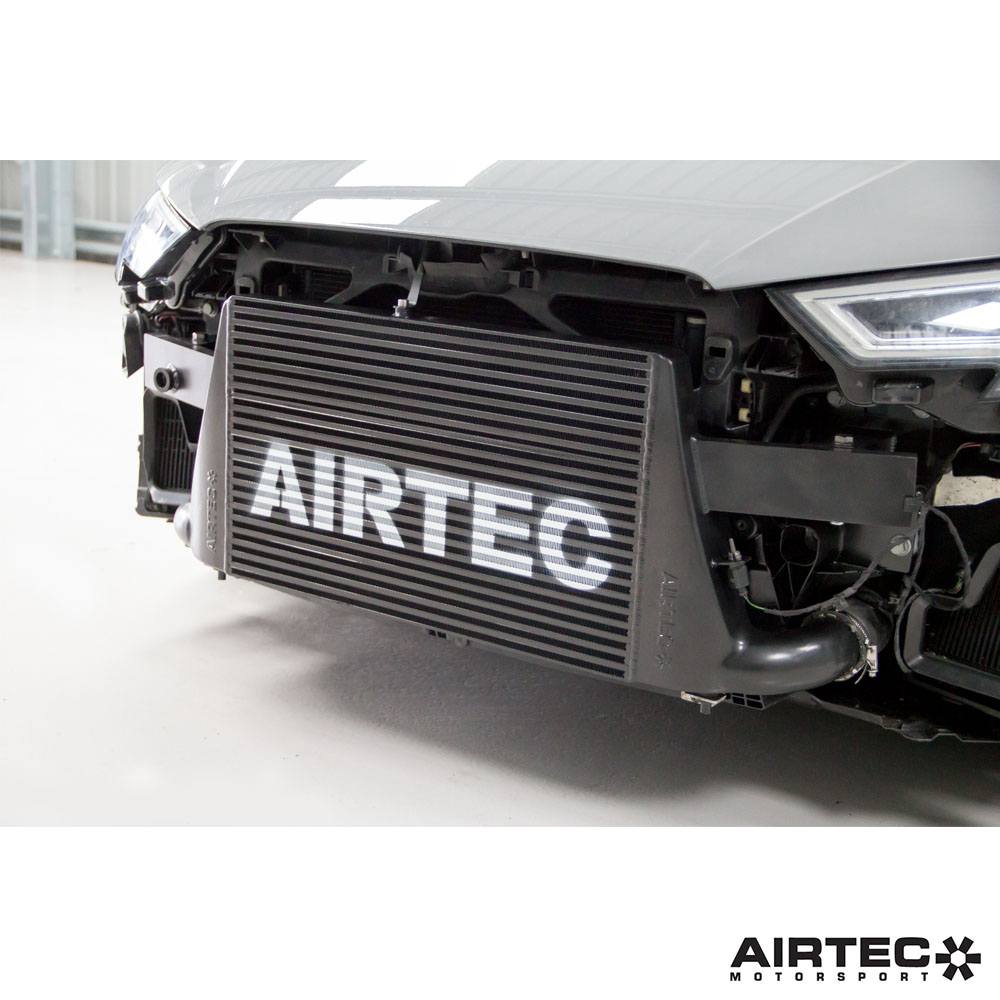

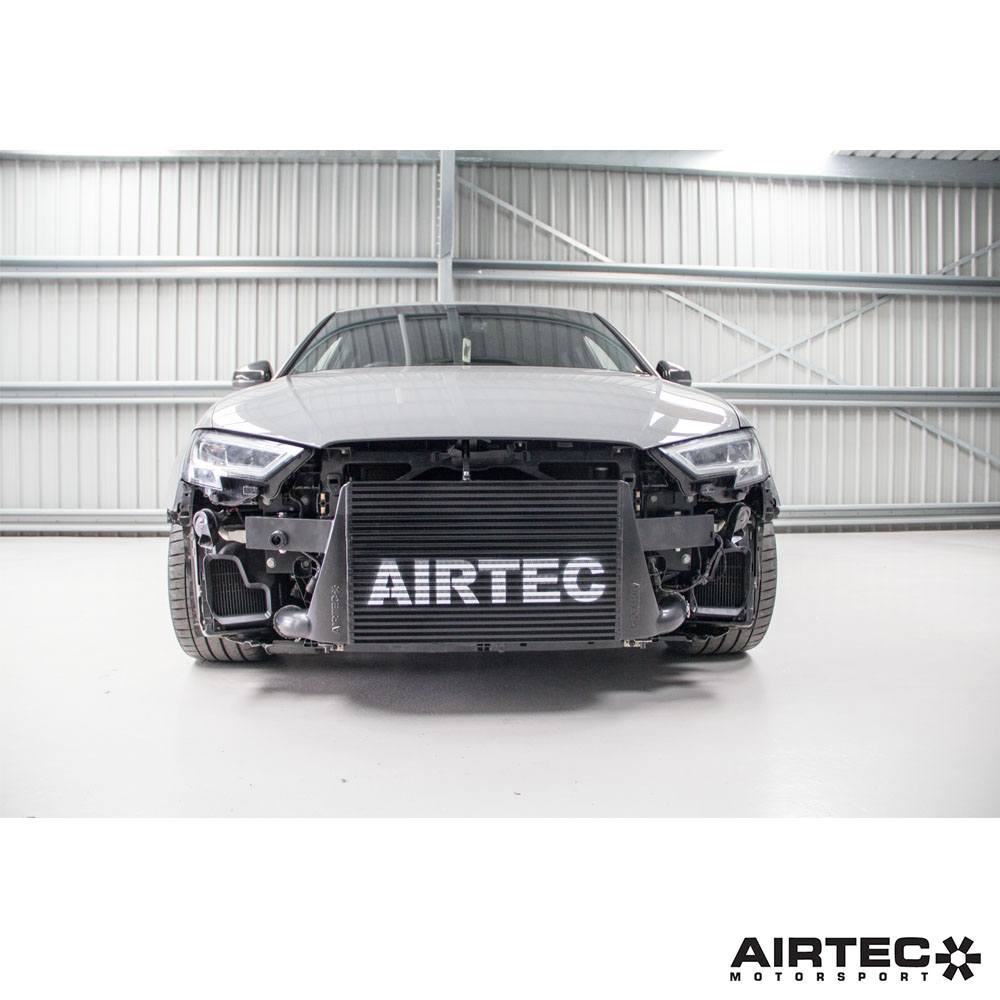

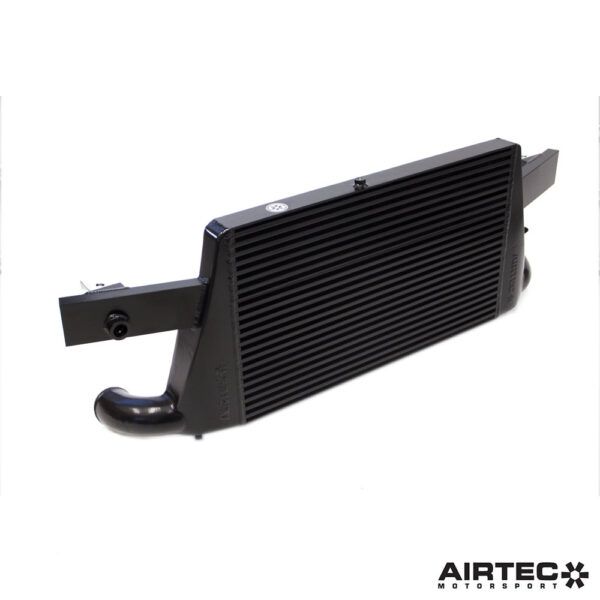

The finished design features a 70mm inlet and outlets that flow freely through custom end tanks into a stepped 100mm to 50mm single-pass core. By integrating the crash bar into the design, the intercooler makes full use of the vehicle’s entire front grille area while still retaining the towing eye feature.
It, therefore, offers a huge 125% increase in surface area and a 108% increase in volume over standard with radically reduces charge temperatures, which is suited for highly modified examples with higher boost pressures and capable of supporting over 500bhp.

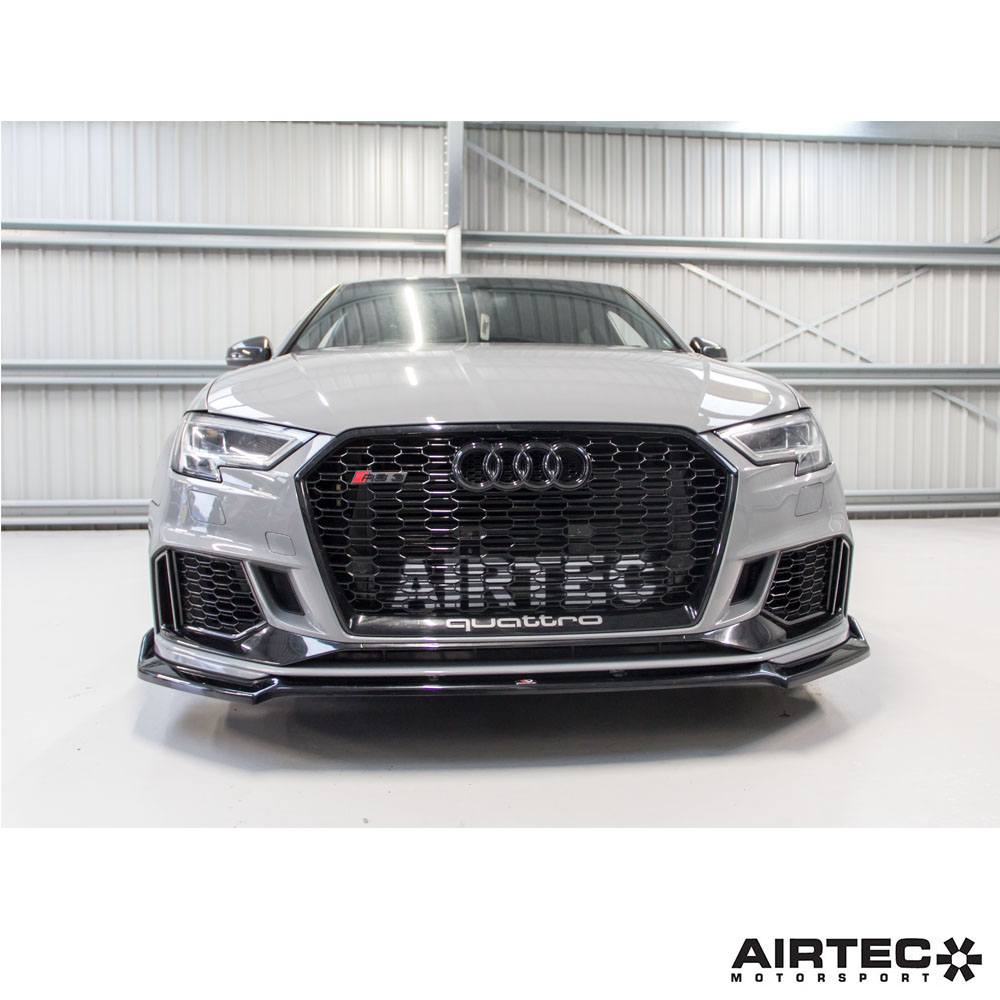

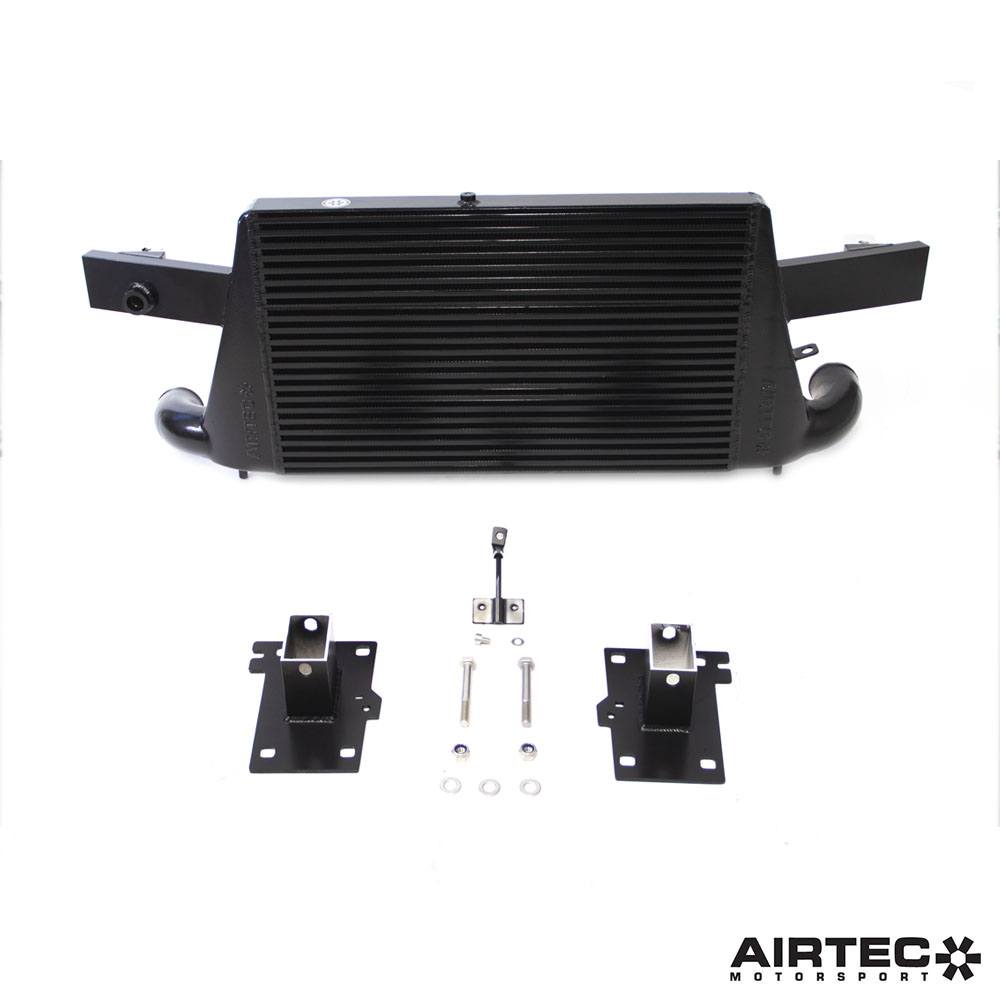

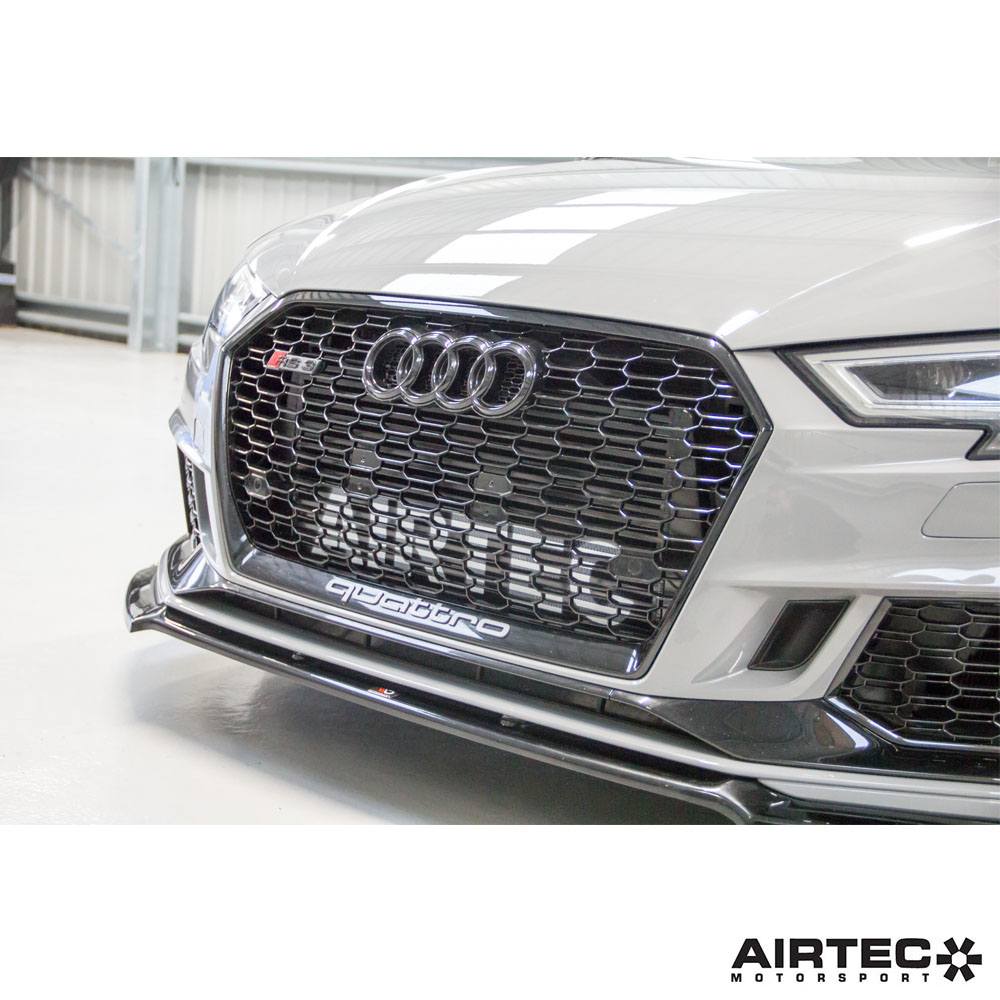

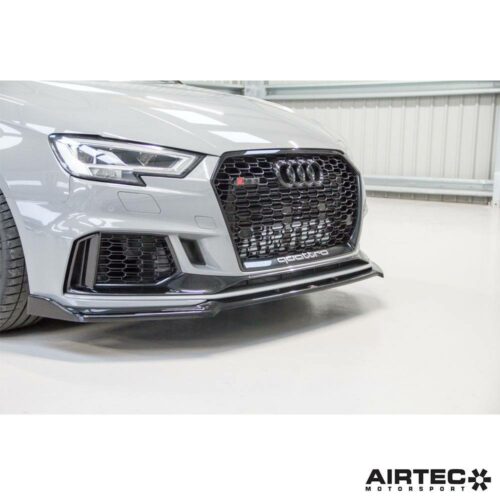

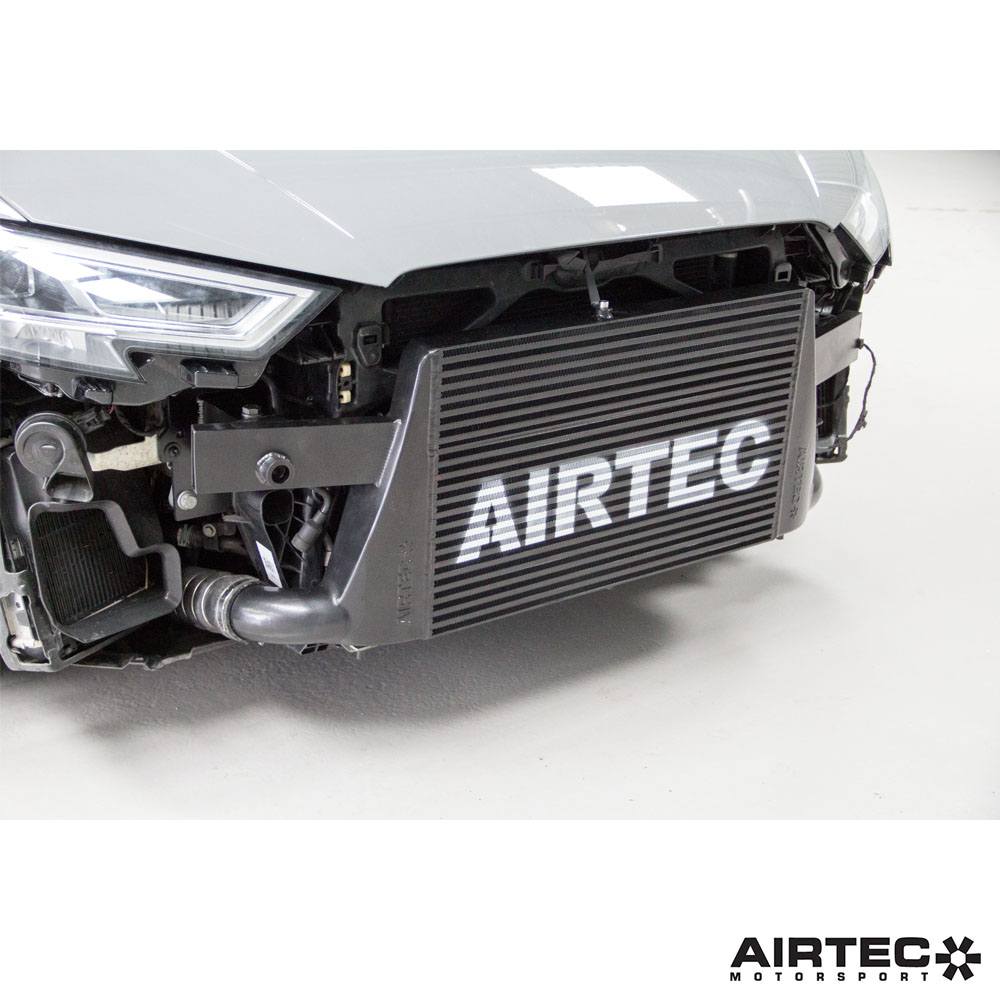

It fits neatly behind the original bumper and the comprehensive kit includes AIRTEC Motorsport’s replacement bonnet catch, laser-cut brackets and all fixtures and fittings.
Its proven cooling efficiency makes it an essential modification for all modified Audi RS3 8S.
OEM intercooler
Width: 640mm
Height: 163mm
Depth: 80mm
Capacity: 8.3 litres
Front area: 1,043cm²
AIRTEC Motorsport intercooler
Width: 627mm
Height: 375mm
Depth: 100mm to 50mm stepped core
Capacity: 17.3 litres
Front area: 2,351cm²
Features
- 108% bigger capacity
- 125% larger frontal area
- Proven race quality bar and plate core
- 70mm inlet and outlets
- CAD designed end tanks to optimise airflow
- Comes complete with full fitting instructions
- Proven power increases and cooling efficiency
- Towing eye feature retained
- New bonnet catch supplied
- Available in Pro-Series Black only
