| MAKE | MODEL | YEAR | ENGINE |
|---|---|---|---|
| MAKE | MODEL | YEAR | ENGINE |
| Audi | TTRS | 8S | 2.5 TFSI |
| Audi | TTRS | 8S | 2.5 TFSI |
Description

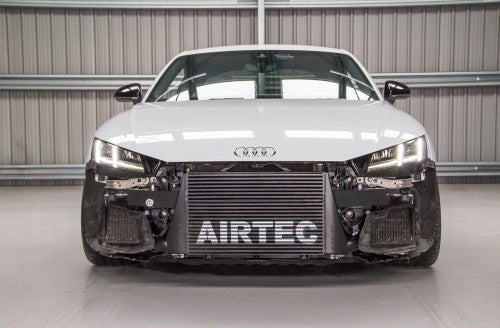

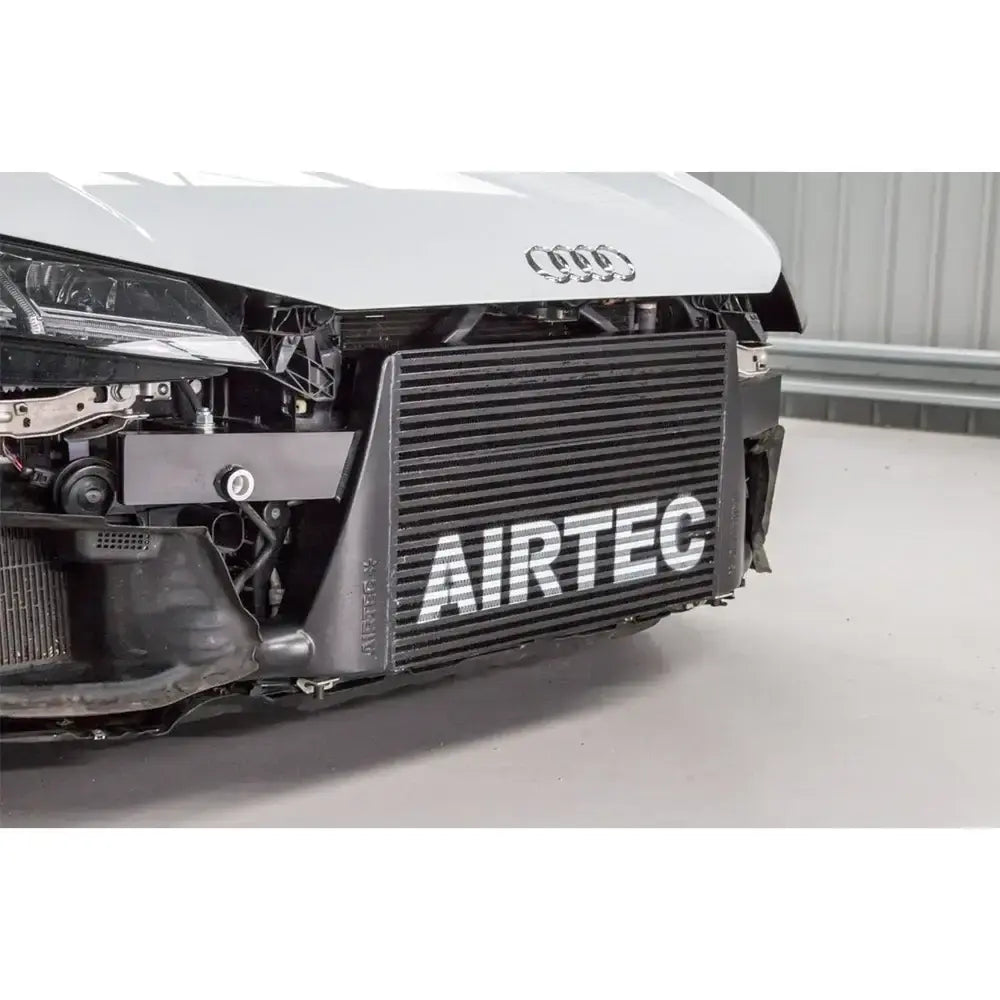

Airtec Stage 3 Intercooler Upgrade for TTRS 8S
Freshly developed at AIRTEC HQ in the UK, we’re proud to launch our Stage 3 front mount intercooler kit with integrated crash bar design (Replaces the stock crash bar) aimed at modified Audi TTRS so 8S owners who want the very highest level of cooling efficiency, power and performance for track or fast road use.
The finished design features a 70mm inlet and outlets that flow freely through custom end tanks into a stepped 100mm – 50mm deep, single-pass core. By integrating the crash bar into the design, the intercooler makes full use of the vehicle’s entire front grille area while still retaining the towing eye feature.
Airtec Stage 3 Intercooler , therefore, offers a huge increase in surface area and volume over standard and radically reduces charge temperatures, which is suited for highly modified examples with higher boost pressures and capable of supporting over 500bhp.
It fits neatly behind the original bumper, however cutting and trimming is required to fit.The comprehensive kit includes AIRTEC Motorsport’s CAD designed end tanks, laser-cut brackets, and all fixtures and fittings.
Its proven cooling efficiency makes it an essential modification for all modified Audi TTRS 8S’.
AIRTEC intercooler features:
- Proven race quality bar so plate core
- 70mm inlet and outlets
- CAD designed end tanks so optimise airflow
- Comes complete with full so fitting instructions
- Proven power increases and cooling efficiency
- Towing eye feature retained
- Replacement silicone hose so headlight washer jet
- Available in Pro-Series so Black only
Please note: Integrated crash bar replaces the stock crash bar – Not declaring modifications can void vehicles insurance. Cutting and trimming is required to fit this kit.
Approximate dimensions:
W – 627mm and H – 375mm
Stepped core so (Lower section)
100m thick
H – 246mm
Stepped core so (Top section)
50mm thick and H – 129mm
70mm outlets.
