ECS Tuning High Flow Turbo Outlet Pipe Kit - Wrinkle Red - 2.0 TSI Gen3

Sale price£302.19 GBP

ECS Tuning High Flow Turbo Outlet Pipe Kit - Wrinkle Red - 2.0 TSI Gen

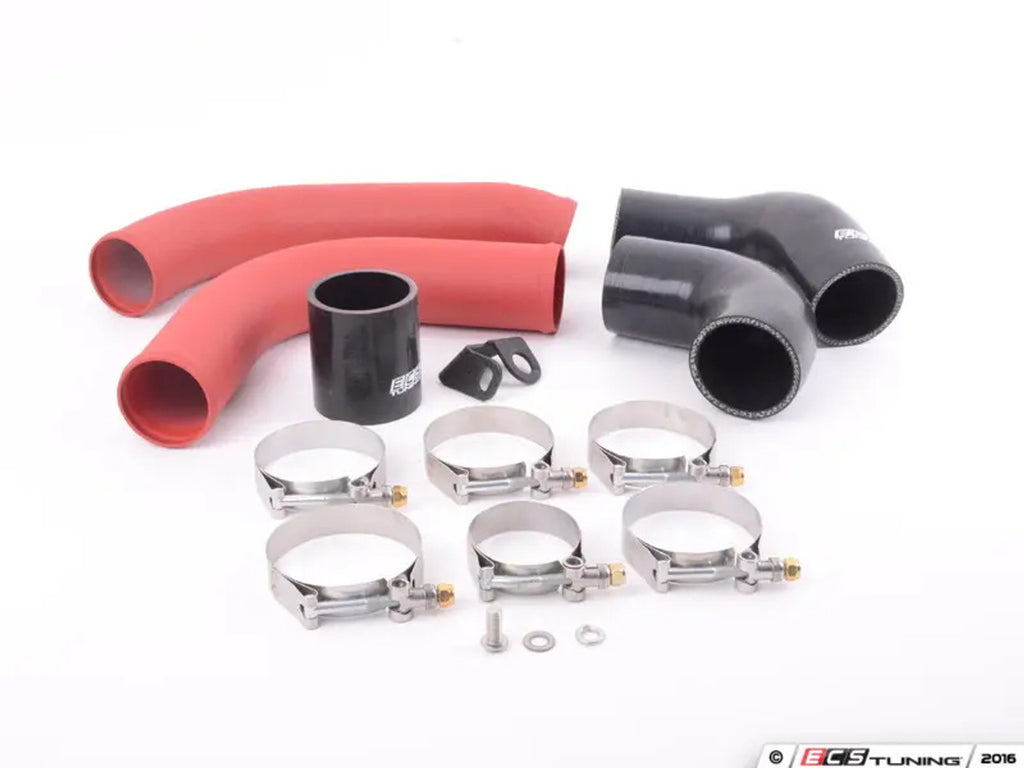

The ECS High Flow Turbo Outlet Pipe Kit includes the following

  • Silicone Turbo Outlet Coupler
  • 60mm Upper Turbo Outlet Pipe, with CNC-Bent Mounting Bracket and Hardware
  • Silicone Upper-to-Lower Turbo Outlet Pipe Coupler
  • 60mm Lower Intercooler Pipe
  • Silicone Intercooler Inlet Coupler
  • Stainless Steel T-bolt Hose Clamps


Key Features:

  • Reduces turbulence and increases air flow capacity
  • Gains up to 10 WHP & 10 FT-lbs of torque with APR Stage 2 93 octane software, 3.0" Milltek turboback exhaust and ECS Kohlefaser Luft-Technik Air Intake with our High Flow Turbo Outlet Pipe Kit and Throttle Pipe Kit (Gains measured on MK7 Golf R)
  • Mandrel bent and bead rolled aluminum tubing, powder coated in tough wrinkle black or wrinkle red finishes
  • Replaces all rubber hoses from turbocharger-to-intercooler with 4-ply silicone upgrades
  • Easy, direct replacement upgraded part
  • Installation video and PDF available online


**Fits 60mm intercooler inlet tube in OE location only

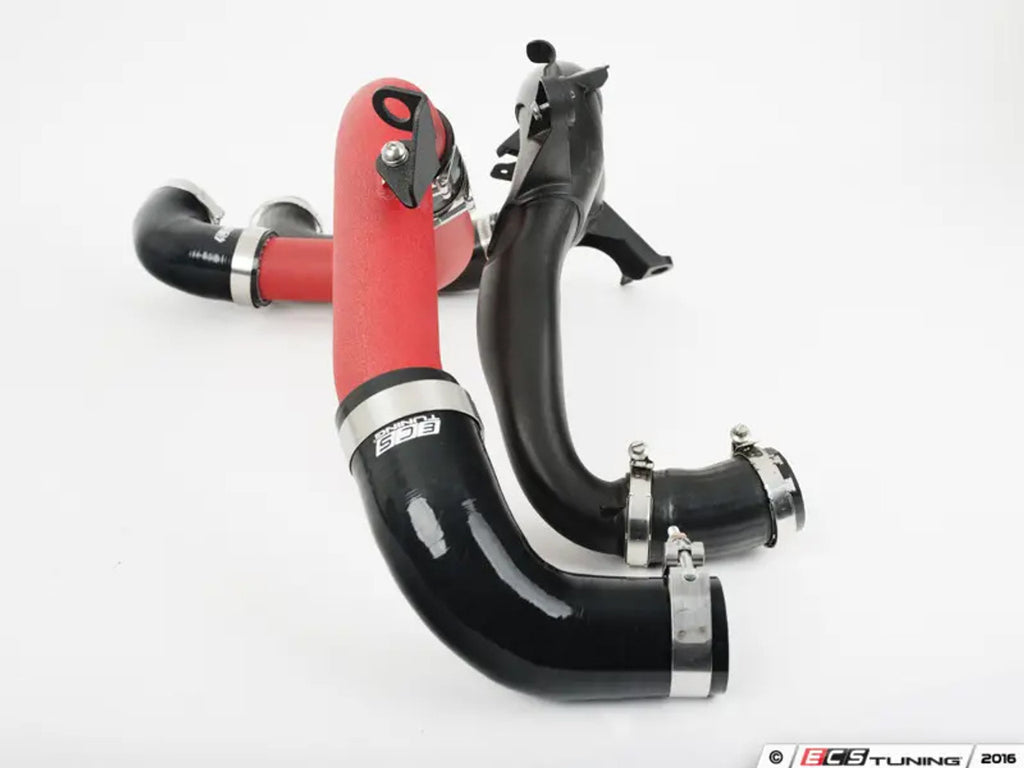

The factory MQB Gen3 plastic charge pipes and rubber couplers were never designed to handle the stress and abuse of higher boost levels much beyond stock. When combined with power-robbing abrupt and sharp bends, inferior rubber material, and small diameter tubing, it's easy to see why your intercooler pipes and couplers should be replaced, even on stock vehicles. ECS Tuning High Flow

At ECS Tuning, we're proud to release our in-house designed and engineered High Flow Turbo Outlet Pipe Kit! Each kit comes standard with mandrel bent, bead rolled, powder-coated aluminum turbo-to-intercooler plumbing, smooth-flowing silicone couplers stainless steel T-Bolt clamps, and all installation accessories for an easy, direct bolt-on installation. ECS Tuning High Flow

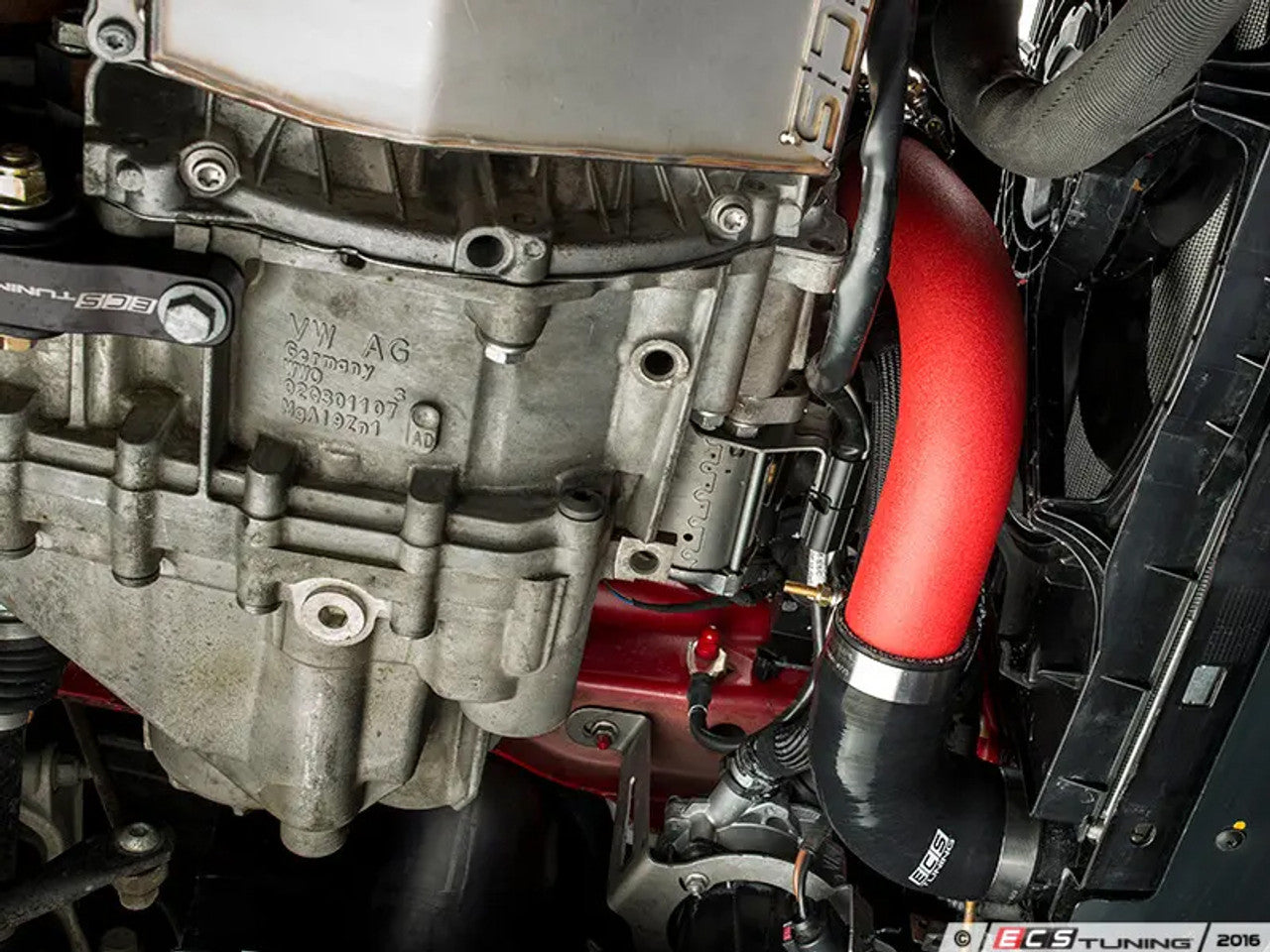

The factory turbocharger outlet pipe has serious restrictions right out of the compressor outlet due to small-diameter tubing and irregular obstructions. We improved on this charge pipe by providing a smooth transitioning silicone coupler right off the turbo outlet which carries boost pressure to our carefully evaluated larger, 60mm (~2 3/8") tubing diameter intercooler pipes. The upper intercooler pipe features a CNC-machined and TIG welded mounting flange for the CNC-bent aluminum mounting bracket to allow for OE-like fitment. The lower intercooler pipe features a smooth transition into the silicone intercooler coupler for optimized flow.

Capable of withstanding greater heat and higher boost pressure than stock, you can expect to achieve greater reliability, less turbulence, and fewer restriction thanks to the larger diameter tubing and smooth silicone bends. Never worry about blowing couplers off of our tubes, as each tube is bead rolled and secured with a stainless T-bolt clamp over our 4-ply reinforced silicone couplers.

Vehicle Fitment

  • Audi/S3 (8V)/Engine Tuning
  • Volkswagen/Golf Mk7/Engine Tuning
  • Volkswagen/Golf Mk8
  • Skoda/Octavia Mk3 (5E)/Engine Tuning
  • Audi/A3 (8V 12-20)/Engine Tuning
  • SEAT/Leon Mk3 (5F)/Engine Tuning

Audi S3 8V

Audi A3 8V

Volkswagen Golf Mk7

Volkswagen Golf Mk8

Skoda Octavia Mk3

Seat Leon Mk3
