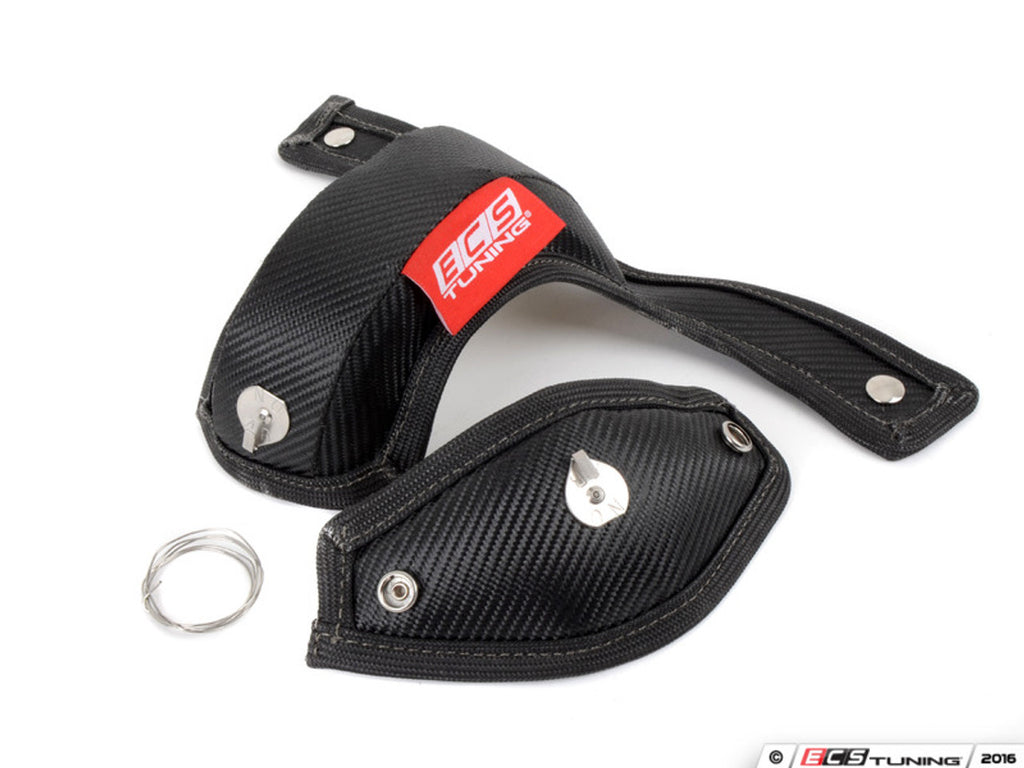

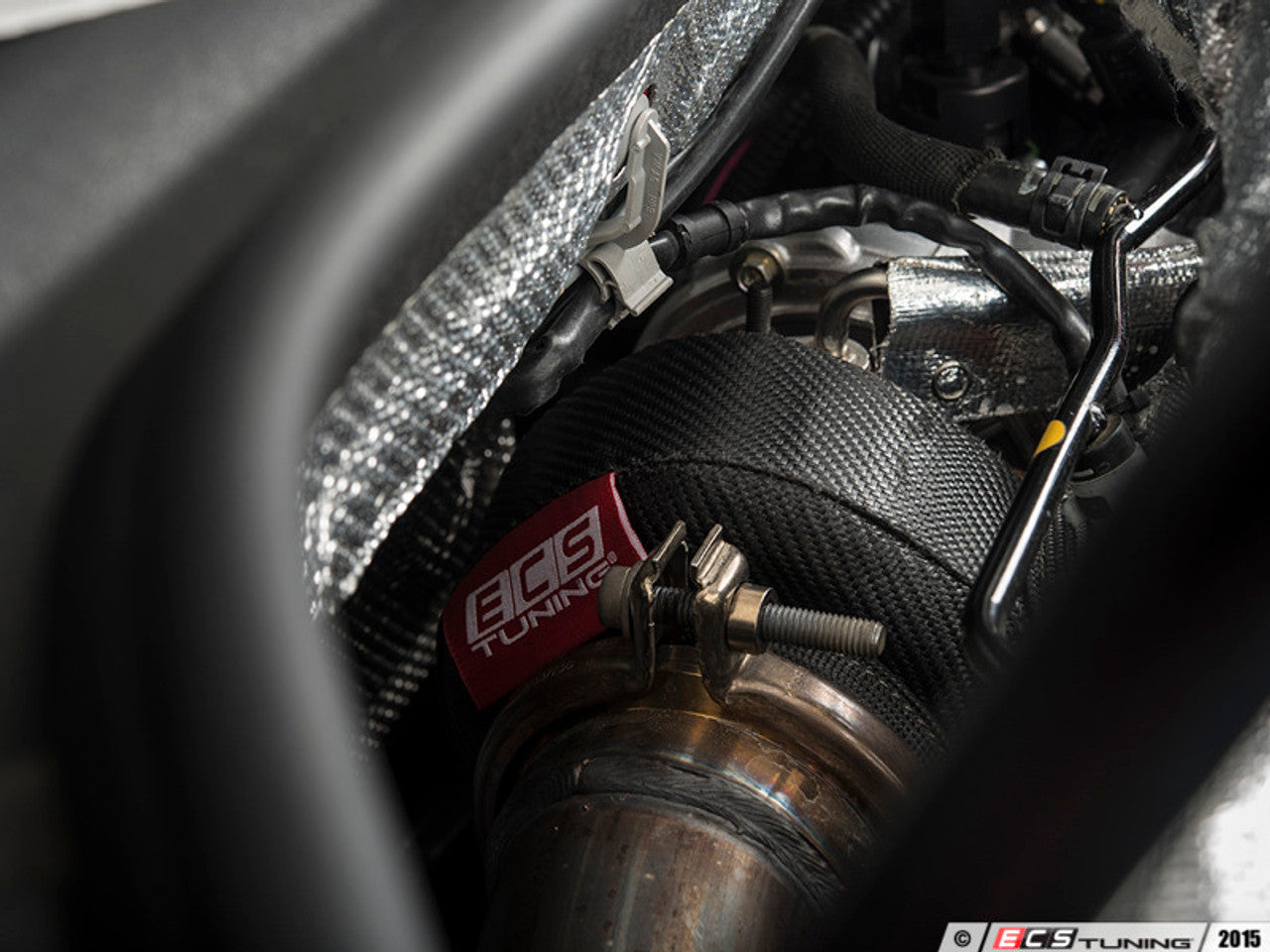

ECS Tuning Turbocharger Blanket For VAG 2.0TFSI EA888 Gen3 Engines

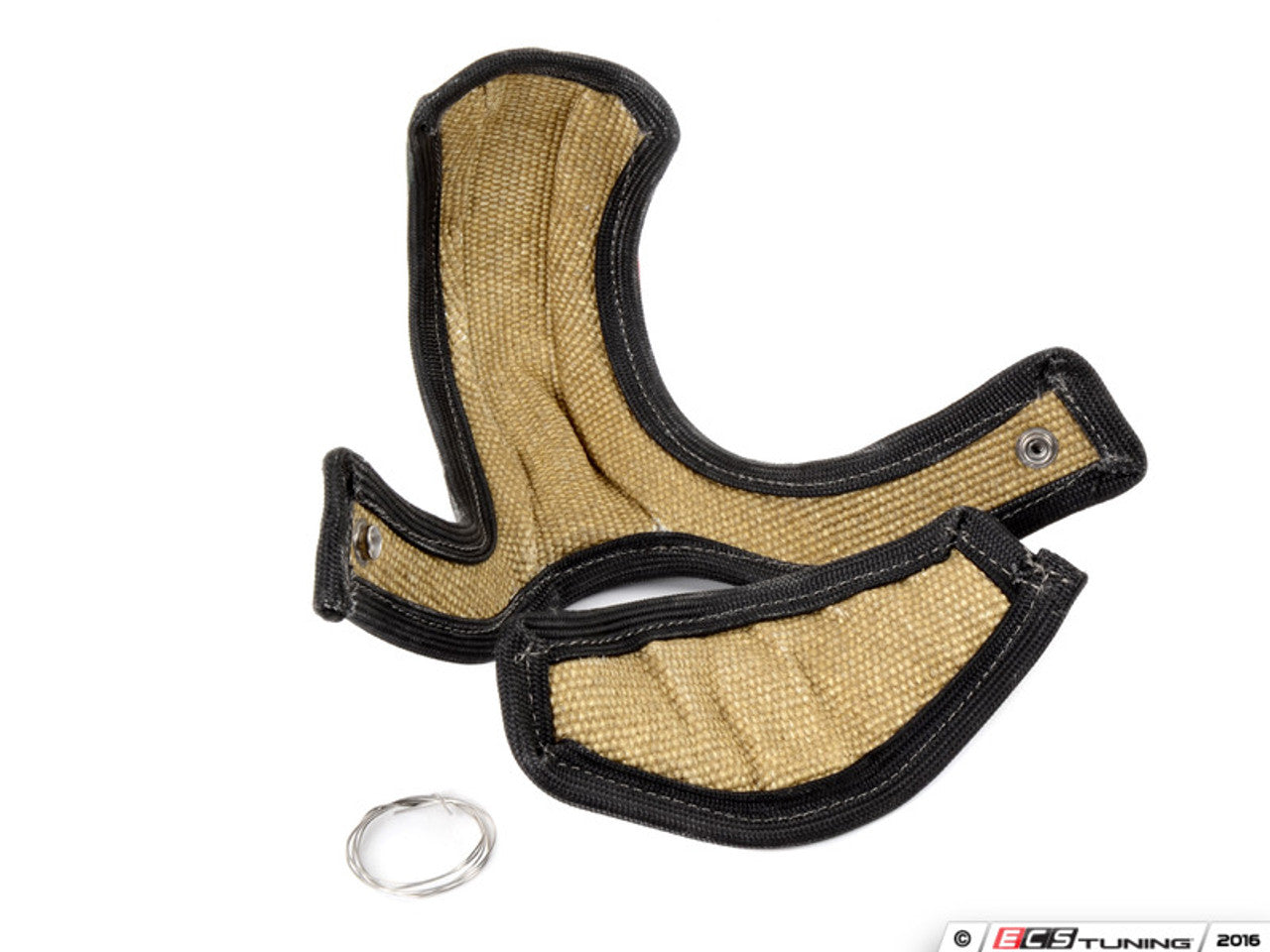

The exterior layer is crafted from heat treated fiberglass, then bonded with molten aluminum and then molded into a tight weave per ECS's specifications for added resiliency. The inner layer is made from a high temperature resistant Silica that is good for temps up to 1,350° F!
Stainless steel mounting anchors along with the included stainless steel wire tie secure the assembly in to position for long lasting, durable operation. Constructed in to two pieces to aid in installation, simply follow our handy Online Installation Tutorial for accurate step-by-step instructions.
Please note:
* Once installed and then exposed to several heat cycles, it is NOT recommended to be removed and reinstalled as the material sets and takes form. The blanket can become damaged if it is removed and reinstalled after being exposed to engine heat.

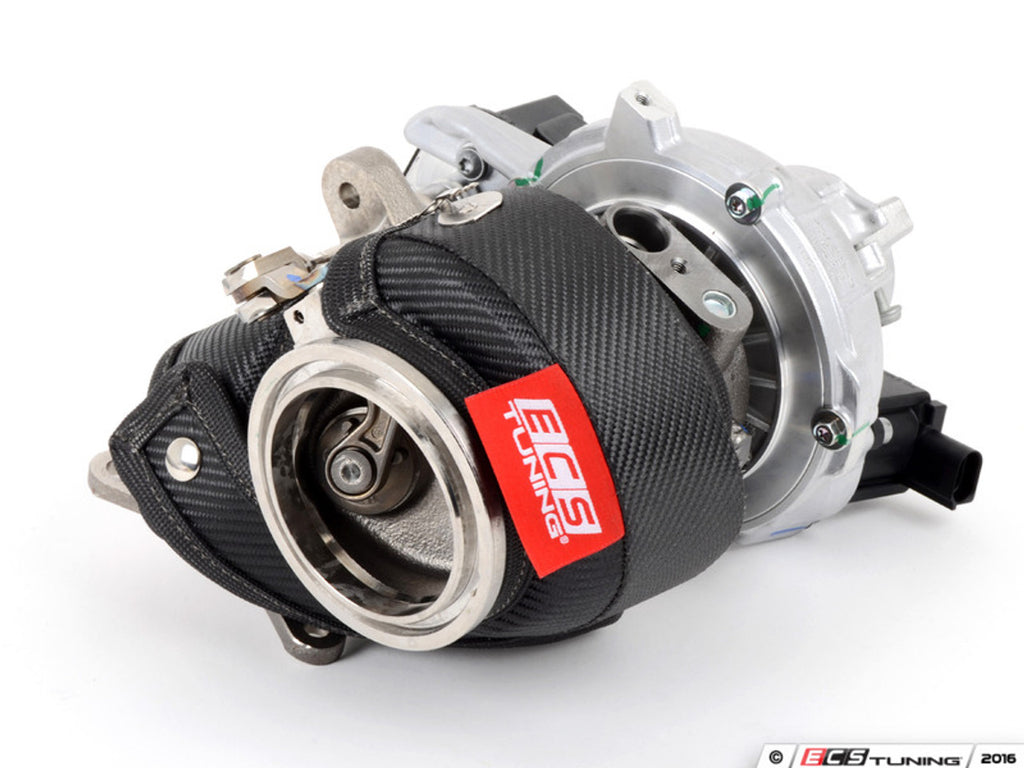

* Turbocharger shown for reference only, it is not included in this part
* Fits OEM IS20 and IS38 turbochargers only
* Lockwire pliars will be required for installation
The sole purpose of insulating the turbine housing (exhaust driven impeller) of your turbocharger is to contain the massive amounts of radiant heat that is expelled by the super hot exhaust gasses within. By containing the heat within the turbine housing, overall engine efficiency is improved and component life can be extended on other nearby parts. ECS Tuning Turbocharger Blanket
