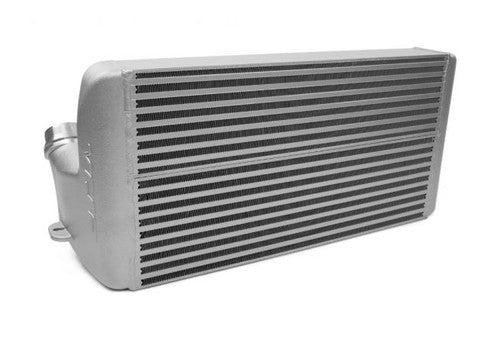

VRSF Race Intercooler FMIC - 535i, 640i, 740i F07/F10/F11

Sale price£700.00 GBP

VRSF Race Intercooler FMIC - 535i, 640i, 740i F07/F10/F11

Intercooler Core

The most important component of any intercooler is the core. The core cools the charged air from the turbo before it enters the engine and the OEM BMW tube and fin intercooler is designed to support low boost levels and airflow. Once boost levels and air flow are increased, the OEM unit is easily overwhelmed and can not keep up with the cooling demands of a tune running more than OEM boost levels. This results in heat soak which will result in a power loss and a higher potential for pre-detonation in the upper RPM range.

The VRSF Race HD FMIC resolves this problem with our application-specific bar and plate core design which utilizes a staggered and offset, high-density fin pack. Our core has been carefully tuned to provide the best intake temperature reduction while maintaining minimal pressure drop. Our HD bar and plate intercoolers are also much more durable and have the ability to withstand rocks and other debris much better in comparison to tube and fin style intercoolers.

The OEM intercooler easily heat soaks and the temperature rises from 80 – 90 degrees during a 2 through 5 gear pull isn’t uncommon. High intake temps are both harmful for your engine and performance. As displayed in the logs below, the VRSF offers a significant improvement in terms of intake temperature control and actually manages to keep temperatures closer to ambient throughout multiple gears pulls. In the example below we show an F10 535i on a 54-degree day. The VRSF Race HD intercooler maintains a safe temperature through the entire 2nd through 5th gear pull while only rising 2 degrees whereas the OEM intercooler rose 76 degrees at the same boost levels (20 psi).

Finish & Construction

Our VRSF intercooler features 3D CAD-designed cast aluminum end tanks for improved flow in comparison to sheet metal end tanks. Our CNC’d, one-piece seamless cast end tanks are also more durable than comparable sheet metal or multiple-piece end tanks. Every VRSF intercooler is finished in a uniform, bright silver coating which helps protect the intercooler from corrosion and ensures your VRSF intercooler holds up to the elements, no matter where you live.

Every VRSF product includes our lifetime warranty & our “No Hassle” satisfaction guarantee which includes fitment & defects.


This is a complete plug and plays bolt in option and we include everything required to replace the OEM intercooler. All VRSF intercoolers feature tabs that allow the retention of the factory fan shroud. Our end tanks utilize the OEM intercooler piping and will work with any aftermarket intercooler piping that fits the OEM intercooler. Each VRSF intercooler is hand-finished and pressure tested to ensure a high-quality, leak-free experience. This intercooler will fit both Left Hand Drive (LHD) & Right Hand Drive (RHD) Models as well as all XI models.


  • Ultra High-Density Bar & Plate Core
  • CFD Optimized Cast Aluminum Plug and Play End Tanks
  • 102% larger than the OEM intercooler.
  • Plug and play with no cutting required.
  • Includes lifetime warranty

Fits the following BMWs

  • 2009 – 2016 F07/F10/F11 BMW 535i & 535xi (RHD & LHD)
  • 2009 – 2016 F07/F10/F11 BMW 535i & 535xi Gran Turismo GT (RHD & LHD)
  • 2010 – 2016 F06/F12/F13 BMW 640i & 640xi (RHD & LHD)
  • 2007 – 2012 F01/F02 BMW 740i (RHD & LHD)
  • 2007 – 2012 F01/F02 BMW 740Li (RHD & LHD)

Bmw 535i, 640i, 740i F07/F10/F11
