| MAKE | MODEL | YEAR | ENGINE |
|---|---|---|---|
| MAKE | MODEL | YEAR | ENGINE |
| Audi | RS3 | 8V | 2.5 TFSI |
Description

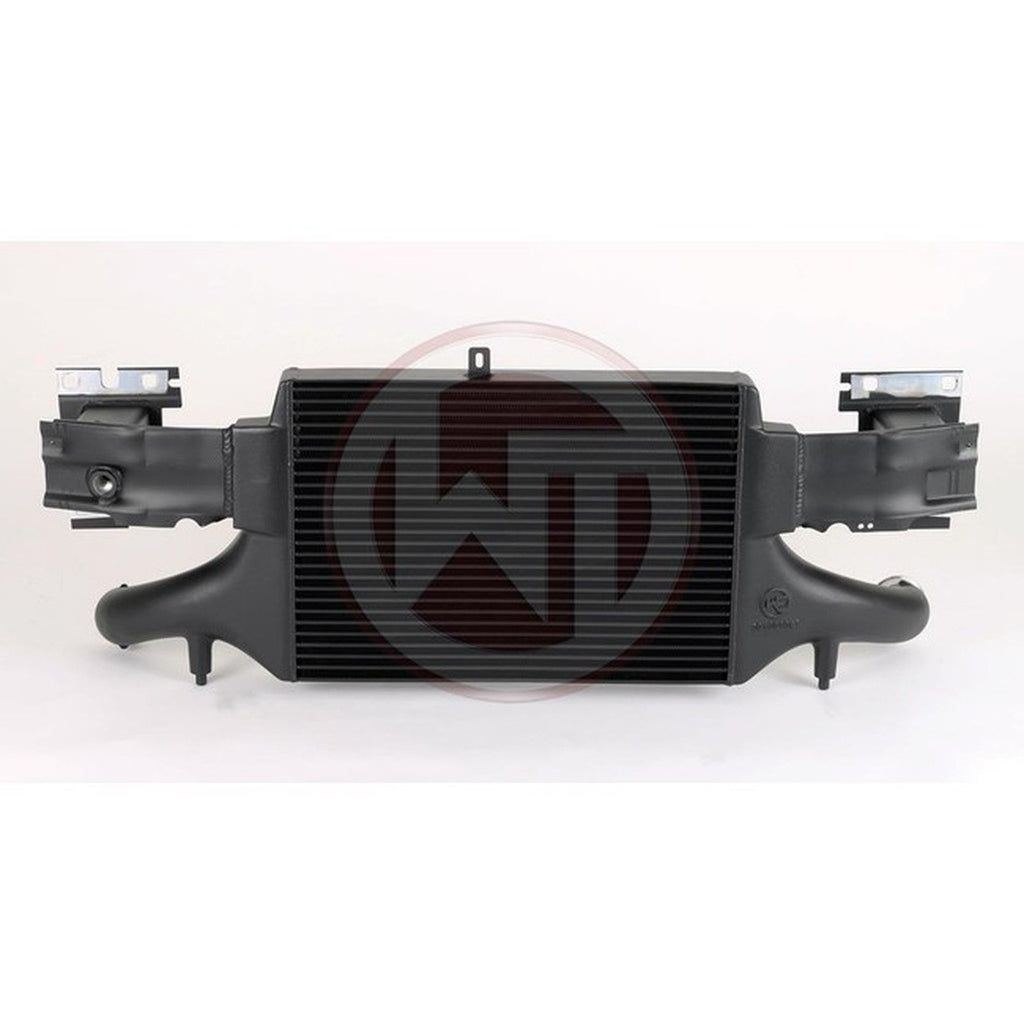

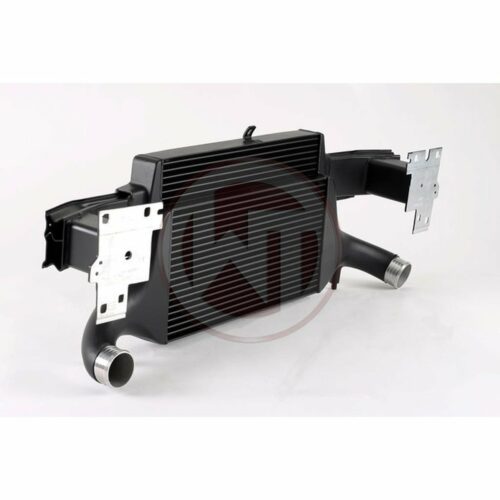

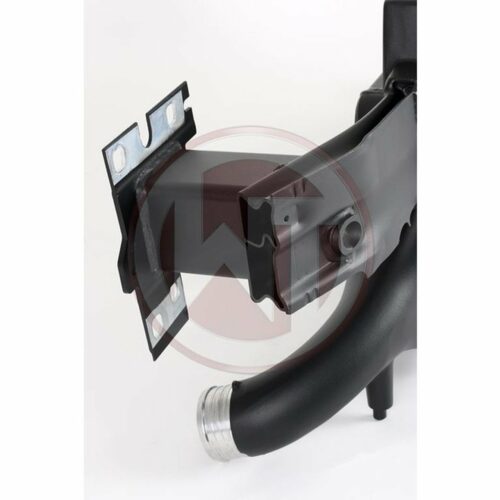

Wagner Tuning Audi RS3 8V EVO3 Competition Intercooler Kit
This kit is the ultimate unit for extreme road and racing. The intercooler and cross member form a stable unit and weigh only 11.7 kg. It is mounted to the original mounting points and is easy to perform (1:1 exchange). Optimum cooling of the charged air with a clear increase in performance!
This high-performance intercooler has the following core dimension 515mm x 367 [274] mm x 95mm providing an 84% larger cooling surface and 101% more charge air volume compared to the original intercooler.
Our newly developed competition core provides ample airflow to the adjacent components (eg the water radiator) and is also very lightweight in construction. The end tanks of the intercooler are made of free-form cast aluminum and have been optimized in CAD. With the help of additional air guides inside the inlet, we achieve uniform filling of the intercooler. This gives excellent cooling with minimum back pressure.
OEM Intercooler: Cooling Surface 1024cm² / Charge-Air-Volume 8.2L
WT EVO 3 Competition: Cooling Surface 1890cm² / Charge-Air-Volume 16.5L
Wagner Tuning Audi RS3 8V EVO3 Competition Intercooler Kit Includes:
- Intercooler including cross member
- Set Mounting Material
- Installation Manual
Additional information
| Intercooler Selection |
With ACC, Without ACC
|
|---|
